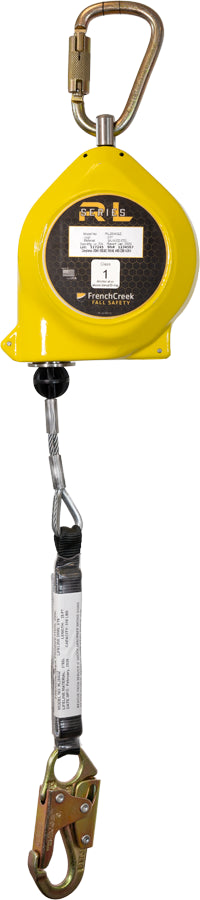

The RL Series features extreme durability with high mobility. These units offer an
extended range of movement with zero slack to eliminate tripping hazards.
-
Lifeline Materials : Galvanized wire rope, Stainless Steel, or Technora®
-
Lifeline Connector : Self locking snap hook or Stainless Steel Carabiner
-
Housing Connector : Carabiner or Stainless Steel Carabiner
-
Shock Absorber Type : External Shock Absorber
-
Anchor Point : Swiveling Anchor Point
-
Impact Indicator : Visual Impact Indicator
-
Length : 25 FT
-
Weight Capacity : 310 Lbs.
-
Housing Material : Rugged cast aluminum
-
Internal Components : Aluminum, Bronze, Stainless Steel Components components
-
Standards : ANSI Z359.11-2021, OSHA 1926.502, 1910.66
Hardware : Snaps: (3/4” opening) alloy steel locking snaphook 3,600 lb.gate
5,000 min tensile strength
Carabiner: (1” opening) alloy steel triple lock carabiner 3,600lb. gate
5,000 min tensile strength
Energy Absorber: Polyester
Arresting Force : Average arresting force 900 lbs., Maximum
arresting force 1,800 lbs.
Maximum Arrest distance : 54 inches
OSHA Capacity : 400 lbs.
ANSI Capacity : 130-310 lbs
